FLOWMASTER^TM SDP-21-22 Compact automatic high pressure 12V / 24V DC electric diaphragm water pump for Agriculture sprayer and portable washer

Other names
Yacht pumps, micro DC diaphragm pumps, mini pumps, DC pumps, automatic pump, micro pump, high pressure pump

APPLICATION SCOPE

• Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
• Clean machine, Humidifier, Water purification, Medical apparatus
• Food beverage filling & liquid transfer
• Any other pressurization system

FEATURES

• Two Chamber positive displacement diaphragm pump for smooth and quiet operation
• Max. Flow: 5.0lpm /1.3gpm
• Max.Pressure:145PSI / 10bar
• Pump can be with: pressure switch controlled or by-pass controlled. For the power controlled you can choose pump without pressure switch and by-pass
• Run dry with no problem
• Duty Cycle: Intermittent (under different pressure the continuous working time will also be different)

SPECIFICATIONS

Notes: 1. Unit description: GPM: gallons / min, L / min: Liters / min, PSI: pounds / square foot
2. Conversion: 1 gallon (U.S.) = 3.785 liters, 1Mpa = 145PSI = 10.2kg/cm = 10Bar

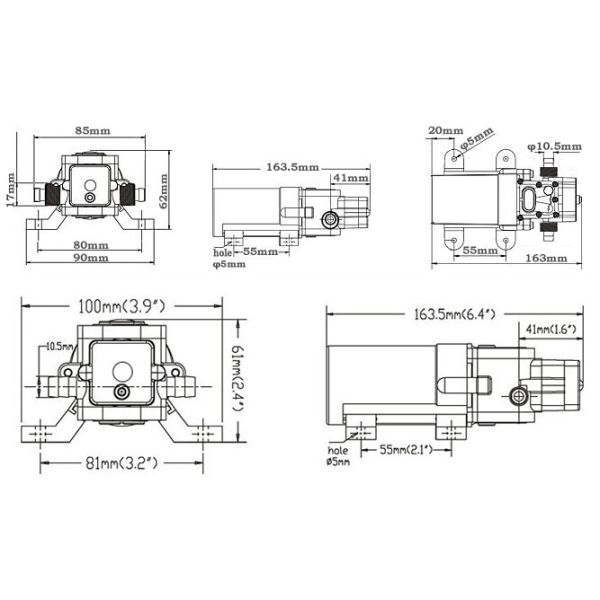

DIMENSIONS

PRESSURE-FLOW CURVE
