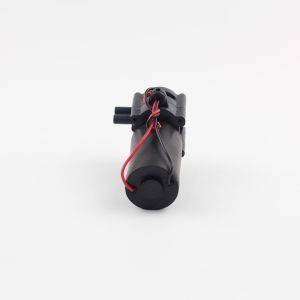

FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series

FLOWDRIFT^TM DC 12/24V Electric Mini Gear Pump KGP-002 FLow 1.0-2.5LPM Quiet Working Food Grade for Hot Water 0-100℃

FLOWDRIFT DC Electric Mini Gear Pump KGP-002 Series

KGP-002 Series Plastic gear pump using the deceleration torque-structure, PPS manufactured housing and gears with brush motor driver to do with the characteristics of small size suitable for intermittent high pressure transmission medium occasions widely used in small appliances: such as coffee machines, sanitary ware, ice-making machines, drinking fountains and the like

■ Overview

Feature
1.small size, high pressure
2. Excellent self-priming,
3.Smooth, Pulseless Delivery
4.Easy to ServiceChemical resistance
5.DC Motor drive.

Application:
spray,
sanitary ware,
ice-making machines
Coffee making machines
drinking fountains
Wine dispensers
Beverage dispensing

Specifications

1	Motor Type	Brush DC motor
2	Max flow	3L/min
3	Max pressure	3Bar
4	Rated Voltage	12V / 24V
5	Suction Height	0.5M, 0.6M
6	Fluid Temperature:	-10 ℃ ≤ T ≤ 100 ℃ (except for the freezing)
7	Pump Theory	Gear pump
8	Use Place	Indoor
9	Media:	A variety of liquid and oil
10	Ideal Life Time	KGP-002 400hour , KGP-004 800hour
11	Working Way	Interrupt

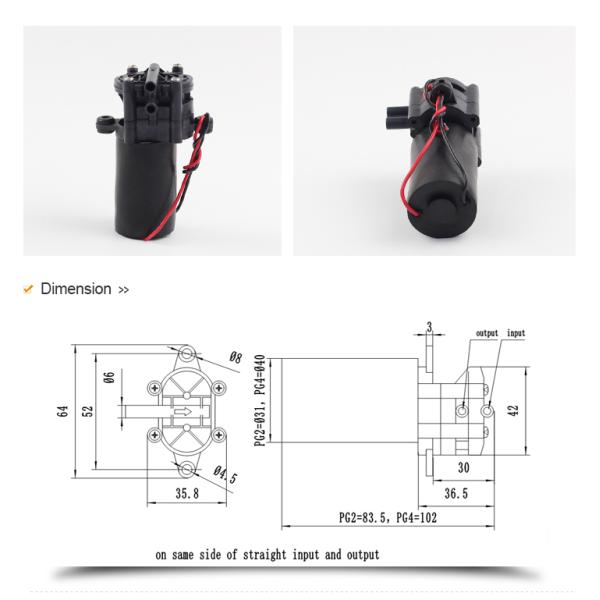

12	Inlet	OD 6.0mm/ID 4.0mm
13	Outlet	OD 6.0mm/ID 4.0mm
14	Weight	PG2 135g , PG4 250g
15	Functions	Can dry-running 3 minutes, Self-priming

Technical parameters

Model	Maximum pressure	flow	Power	Rev.
KGP-002-PG2/DC12A	1.5bar	1.5L / min	20W	8000rpm
KGP-002-PG2/DC24A	1.5bar	1.5L / min	20W	8000rpm
KGP-002-PG2/DC12B	2.5bar	2.5L / min	40W	12000rpm
KGP-002-PG2/DC24B	2.5bar	2.5L / min	40W	12000rpm
KGP-002-PG4/DC12A	1.5bar	1.5L / min	20W	5000rpm
KGP-002-PG4/DC24A	1.5bar	1.5L / min	20W	5000rpm
KGP-002-PG4/DC12B	2.5bar	2.5L / min	40W	8000rpm
KGP-002-PG4/DC24B	2.5bar	2.5L / min	40W	8000rpm

Note: 1, ambient temperature: 0 ~ 50 ℃; Humidity: ≤75%.

2, fluid viscosity: 0 ~ 1500CPS; Fluid temperature: -10 ℃ ≤T≤100 ℃ (except freezing).

3, work: Intermittent working system recommends a single working hours do not exceed 10 minutes.

4, using the medium: pure water or an aqueous solution free of impurities, oils.

CHEMICAL RESISTANCE

Chemical Resistance Code

Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

－ —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)

CHEMICAL		MATERIAL
CHEMICAL		PP	PTFE	FKM	NBR	EPDM	95 Ceramic
Sulfuric Acid	0-10%	A4	A6	A6	B2	A4	A5
	10-75%	A3	A6	A4	X	A3	A5
	75-100%	B2	A4	A4	－	B2	A5
Nitric Acid	10%	A3	A5	A5	X	A2	A5
	30%	A2	A6	A6	X	A2	A5
	50%	B2	A3	A1	X	X	A5
Hydrochloric Acid	0-25%	A4	A6	A3	B1	C3	A5
Hydrochloric Acid	25-40%	A4	A6	A2	X	C2	A5
Hydrofluoric Acid	10%	B2	A6	A3	X	A3	－
	30%	C2	A6	A4	－	B3	－
	60%	X	A6	A4	－	C2	－
Acetic Acid	20%	A2	A6	B1	B2	A2	A5
Acetic Acid	80%	B1	A6	X	－	－	A5
Sodium Hydroxide	20%	A3	A6	B1	B2	A3	－
Sodium Hydroxide	50%	A3	A6	X	B1	A4	－
Bromine Water		C1	A3	A2	－	X	A1
Ethyl Alcohol		A2	A3	A3	X	B3	A3
Ketone		A2	A6	X	－	B2	A3
Freon 12		X	A6	A1	X	B1	A4
Aluminum Chloride		A4	A6	A5	B4	A4	A4
Ammonia Liquid		A1	A6	C1	B4	B3	A3
Aqua Regia		C2	A5	B2	－	C2	A4
Formaldehyde		A4	A6	A4	X	A4	A4
Gasoline		X	A6	B3	B3	X	A4
Kerosene		A1	A6	A1	B1	X	A4
Methyl Alcohol		A3	A6	B2	B4	A3	A5
Toluene		C1	A4	B1	－	X	A5
Trichloroethylene		C1	A6	A1	－	X	A4
Xylene		X	A6	B1	－	X	A5
Nitric Acid Anhydrous		C1	A3	A1	－	X	A5
Oleum		X	A6	A4	－	X	A5
Potassium Hydroxide		A4	A6	B1	C2	A5	－

USAGE SCOPE

Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
